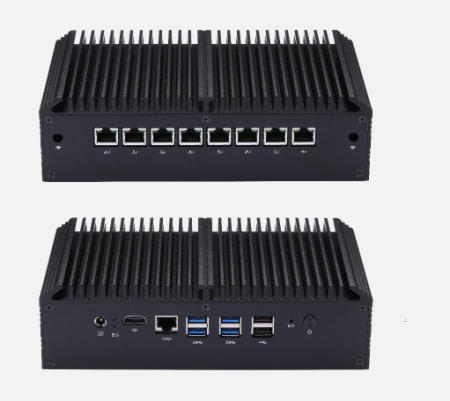

Промышленный мини-компьютер Qotom Mini PC Q818GE S10

Processor System

CPU

Intel 8th Gen Celeron Kaby Lake SOC Processor

Default 3867U Dual Core Processor, 1.8GHz, 2M

Cache, 15W

Memory

1 x DDR4L SO-DIMM Socket (Up to 16G, 2133/2400MHz)

Chipset

By CPU

Display

Intel® HD Graphics 610

1 x HDMI, 1 x VGA (Option)

LAN Chipset

4 x Intel I211-AT Gigabit LAN,

4 x Intel I350 Gigabit LAN

M.2

1 x E key M.2 for WI-FI (Type: 2230mm)

Mini-PCIe

1 x Full Size for 3G/4G

Audio

N/A

Storage

1 x 2.5-inch HDD/SSD

1 x mSATA for SSD

SIM Card Slot

1

RS-232

6 (COM2/COM3 supports 5V/12V)

WatchDog

Yes

GPIO

1 x 2.0 Pitch Header

RS-485

COM2/COM3 can be set up as RS-232/RS-485

(BIOS Setting)

Power On

Yes

Front I/O

Power Button

1

Reset Button

1

LED

1 x Power LED, 1 x HDD LED

DC-IN

12V3A，5.5mm，2.5mm

Serial

1 x RS-232 (RJ45)

USB

4 x USB 3.0，2 x USB 2.0

Display

1 x HDMI

Rear I/O

LAN

4 x Intel I211AT Gigabit LAN,

4 x Intel I350 Gigabit LAN

Mechanical

Материал

Aluminum

Размеры

217 x 122 x 62mm

Вес

2.5kg

Размеры упаковки

265 x 255 x 80mm

Kensington Lock

No

Cooling Mode

Fanless, passive cooling

Mounting

VESA Mounting Bracket

OS Support

OS

Windows 7，Windows 8，Windows10，Linux

Environmental

Рабочая температура

0°C~50°C

Non-Operating Temp

-20°C~80°C

Влажность

10%~90%

Packlist

PackList

1 x MiniPc，1 x Power supply，1 x Power cable，1 x VESA
